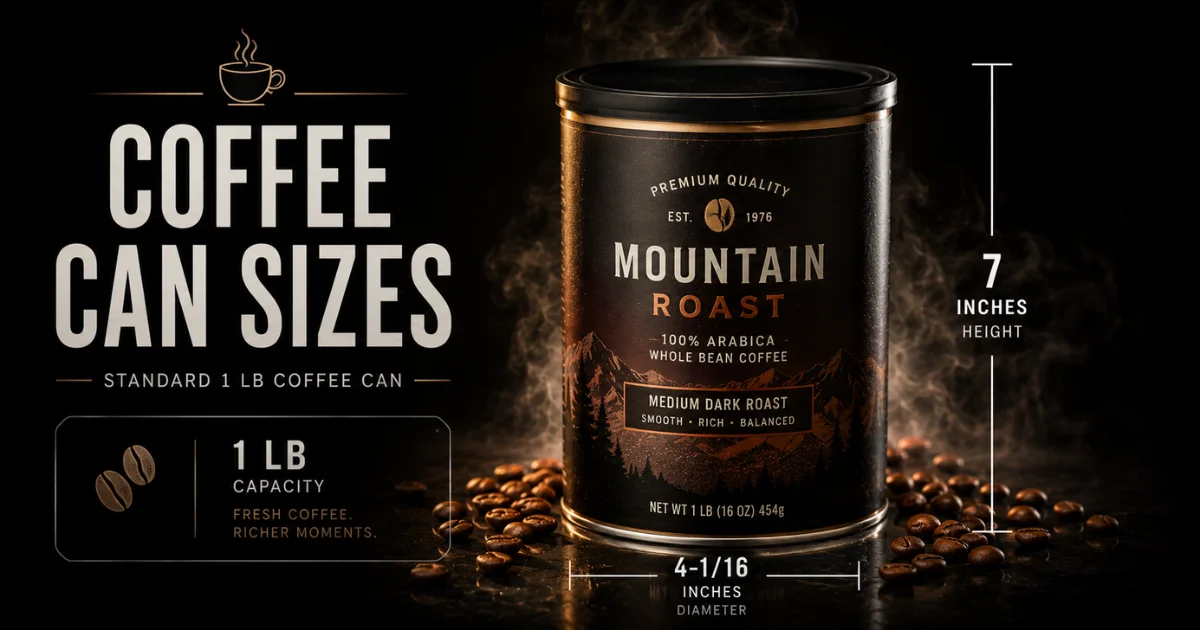

The standard 1 lb coffee can stands 7 inches tall with a 4-1/16 inch diameter. But that’s just the starting point. From the compact 4 oz specialty tin to the massive #10 commercial can, each size carries precise specs that affect everything from grocery shelf space to pallet stacking and shipping costs.
Coffee Can Dimensions Chart
Keep this chart handy for retail planning, label design, packaging specs, or bulk order setup.
Coffee Can Dimensions Chart
| Can Name | Height (in) | Height (cm) | Diameter (in) | Diameter (mm) | Capacity | Coffee Weight |
|---|---|---|---|---|---|---|
| Small / Specialty | 4.00 | 10.2 | 4.0625 | 103 | ~8–9 oz | 6–9 oz |
| Mid-Size Retail | 5.50 | 14.0 | 4.0625 | 103 | ~13 oz | 10–13 oz |
| Classic 1 lb | 7.00 | 17.8 | 4.0625 | 103 | ~16 oz | 12–16 oz |
| Vintage 2 lb | 6.00 | 15.2 | 5.125 | 130 | ~32 oz | 2 lbs |
| Giant #10 Commercial | 7.00 | 17.8 | 6.1875 | 157 | 100–110 oz | 3–5 lbs |
| Folgers Large Plastic | 8.875 | 22.5 | 5.9375 | 150 | ~43 oz | 39–43 oz |
All measurements align with Can Manufacturers Institute (CMI) standards used across the U.S. coffee packaging industry.
More Post: https://suitcasessize.com/ammo-can-sizes/

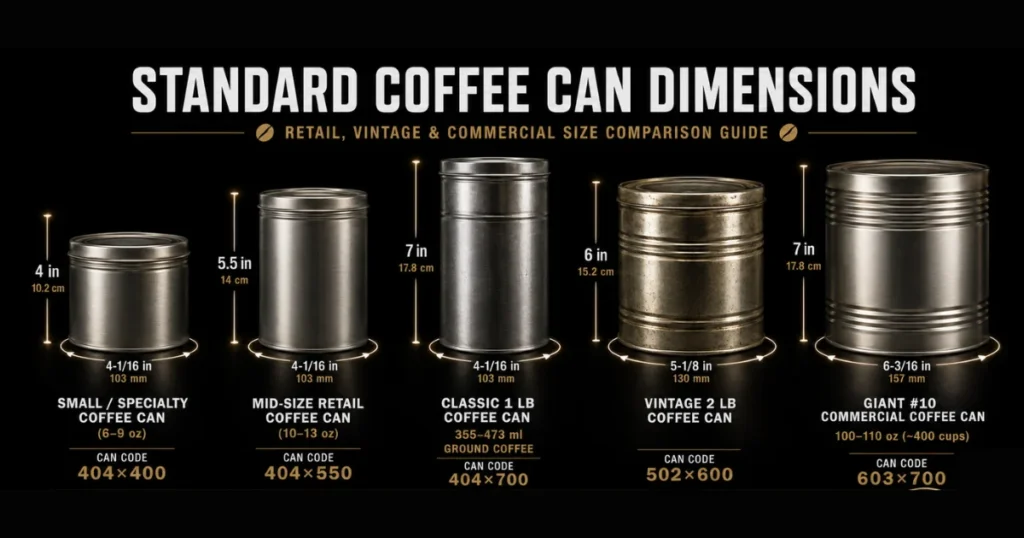

Standard Coffee Can Dimensions by Size
Not all coffee cans are the same. Each size has a specific purpose, a specific audience, and specific numbers that matter for freshness, production, and retail performance.
Small / Specialty Coffee Can (6–9 oz)
It stands 4 inches (10.2 cm) tall and measures 4-1/16 inches (103 mm) in diameter. Can code: 404×400.
This is the format for single-origin samples, gift sets, subscription boxes, and limited-edition blends. DTC brands and boutique roasters favor it because it fits inside standard USPS flat-rate shipping boxes — keeping fulfillment costs low.
Mid-Size Retail Coffee Can (10–13 oz) — The Grocery Aisle Standard
It stands 5.5 inches (14 cm) tall with the same 4-1/16 inch diameter. Can code: 404×550.
Walk into any U.S. grocery store and this is what fills most coffee shelves. Brands size their cans around one key retail fact: 99 mm diameter cans fit exactly 6 units across a standard 24-inch deep shelf.
Classic 1 lb Coffee Can — The American Standard
It stands 7 inches (17.8 cm) tall and measures 4-1/16 inches (103 mm) in diameter. Can code: 404×700. It holds approximately 355–473 ml of ground coffee.
This shape became the U.S. coffee can standard in the 1920s. Vacuum-packing technology at the time required a tall, narrow body to hold a strong seal without the walls collapsing inward.
Vintage 2 lb Coffee Can
It stands 6 inches (15.2 cm) tall with a wider 5-1/8 inch (130 mm) diameter. Can code: 502×600.
This format dominated U.S. kitchen pantries through the 1970s and 1980s. Today it’s less common in retail but still used by some specialty roasters and regional brands targeting bulk home buyers.
Giant #10 Commercial Coffee Can
It stands 7 inches (17.8 cm) tall with a wide 6-3/16 inch (157 mm) diameter. Can code: 603×700. It holds 100–110 oz of ground coffee — enough for approximately 400 cups.
Restaurants, church kitchens, hotel breakfasts, office break rooms, and emergency food supplies all run on this format.

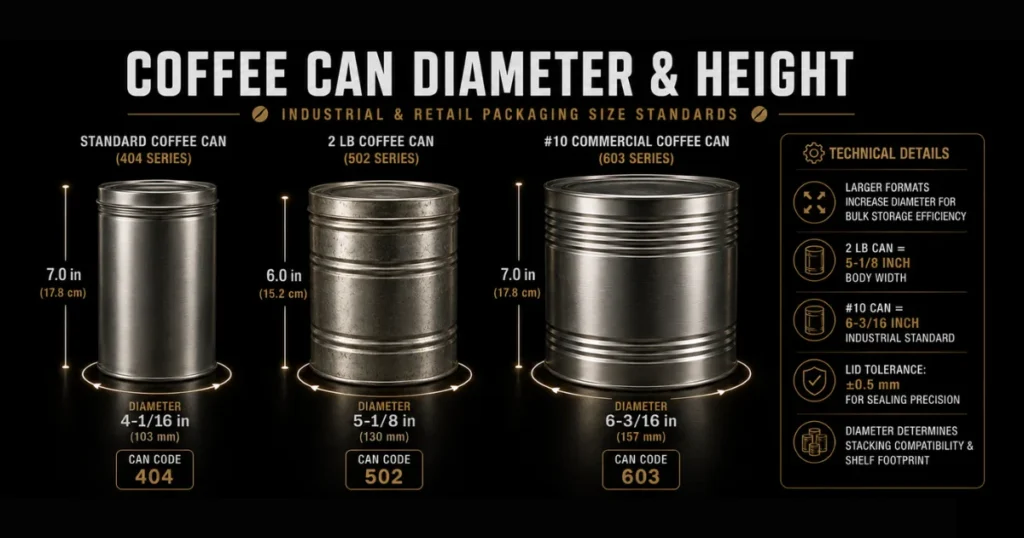

Coffee Can Diameter & Height Explained
This is not a coincidence. Manufacturers locked in the 4-1/16 inch diameter so that one lid size, one filling machine, and one labeling line handles every height variant. Only the height changes to adjust the volume. It’s a production efficiency decision that became an industry-wide standard across all major U.S. coffee brands.
Larger commercial formats step up to wider bodies — the 2 lb uses 5-1/8 inches, and the #10 giant uses 6-3/16 inches. The lid tolerance on all metal coffee cans must fall within 0.5 mm of the can opening. A loose fit lets air in and kills freshness fast. Too tight and consumers can’t get the lid off.
Coffee Can Dimensions vs. Flexible Packaging Dimensions
Cans and flexible bags both store coffee — but their physical footprint and freshness performance differ significantly.
Coffee Can Dimensions vs. Flexible Packaging Dimensions
| Container | Height (in) | Diameter / Width | Capacity | Material |
|---|---|---|---|---|
| Classic 1 lb Metal Can | 7.00 | 4-1/16″ (103 mm) | 12–16 oz | Tinplate steel |
| Mid-Size Retail Can | 5.50 | 4-1/16″ (103 mm) | 10–13 oz | Tinplate steel |
| #10 Commercial Can | 7.00 | 6-3/16″ (157 mm) | 3–5 lbs | Tinplate steel |
| Standard Kraft Bag (1 lb) | ~9.00 | ~5.00″ wide | 12–16 oz | Kraft / foil laminate |
| Stand-Up Pouch (12 oz) | ~8.50 | ~5.50″ wide | 12 oz | Flexible film |
| Folgers Large Plastic | 8.875 | 5-15/16″ (150 mm) | 39–43 oz | HDPE plastic |
Height comparison: A standard 1 lb metal coffee can at 7 inches is noticeably shorter than a typical 1 lb kraft coffee bag at ~9 inches. That height difference matters for shelf display, cooler storage, and cabinet organization at home.
Freshness comparison: A sealed metal coffee can creates a hard vacuum environment. A flexible bag with a degassing valve releases CO₂ while blocking oxygen. Both work — but the metal can requires no external valve because its rigid body holds the vacuum without venting.
Question’s
What are the standard dimensions of a coffee can?
The standard U.S. 1 lb coffee can measures 4-1/16 inches in diameter by 7 inches tall (can code 404×700). It holds 12–16 oz of ground or whole bean coffee. These specs have been consistent since vacuum-pack technology standardized the format in the 1920s.
How tall is a 1 lb coffee can in inches?
A standard 1 lb coffee can is 7 inches tall (17.8 cm). The mid-size retail version (10–13 oz) stands 5.5 inches. The small specialty tin stands 4 inches. The giant #10 commercial can also reaches 7 inches but is much wider.
What is the diameter of a metal coffee can?
The diameter is 4-1/16 inches (103 mm) for all standard U.S. metal coffee cans — from the 6 oz small tin up through the classic 1 lb format. This universal diameter exists so that one lid size and one filling machine works across every height variation.
How tall is a Folgers coffee can?
The current large Folgers plastic canister (39–43 oz) stands approximately 8-7/8 inches (22.5 cm) tall with a 5-15/16 inch diameter. The original metal 1 lb Folgers can measured exactly 7 inches tall with the 4-1/16 inch standard diameter.
What is the difference between a standard and a #10 coffee can?
A standard 1 lb can (404×700) measures 4-1/16″ diameter × 7″ tall and holds 12–16 oz. A #10 commercial can (603×700) measures 6-3/16″ diameter × 7″ tall and holds 100–110 oz — enough for roughly 400 cups.
How big is a #10 coffee can?
A #10 coffee can measures 6-3/16 inches (157 mm) in diameter by 7 inches (178 mm) tall. It holds 100–110 fluid ounces of ground coffee — approximately 3 to 5 pounds depending on grind density.
Do coffee can dimensions vary by brand?
No. The physical diameter and height follow standardized Can Manufacturers Institute (CMI) specs. Branding, labels, colors, and finishes vary by brand — but the core can code measurements (404×400, 404×550, 404×700, 603×700) are consistent across all U.S. coffee manufacturers.
What does 404×700 mean on a coffee can?
It’s the industry size code. The first three digits are the diameter in sixteenths of an inch — 404 = 4 and 4/16 inches = 4.0625 inches. The last three digits are the height — 700 = 7 and 0/16 inches = exactly 7 inches.
Are U.S. coffee can dimensions the same internationally?
Not exactly. European markets use metric sizing — common formats are 83×95 mm (250g) and 99×130 mm (500g). Asian markets follow different gram-weight standards. The U.S. system based on the 404×700 can code and pound-weight fills is specific to the North American market.
