The standard 12 oz beer can stands 4.83 inches tall with a 2.13-inch diameter. But that’s just the starting point. From the compact 8 oz mini to the massive 32 oz crowler, every size has precise specs that affect cooler slots, vending machines, label printing, and retail shelf space.

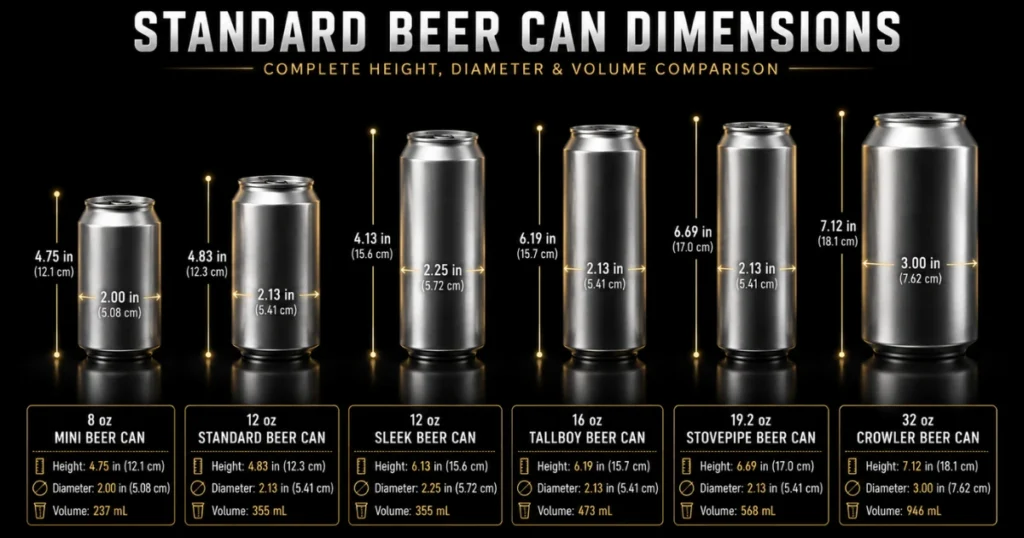

Beer Can Dimensions Chart
Keep this chart handy for cooler planning, label design, packaging specs, or retail display setup.
Beer Can Dimensions Chart
| Can Size | Height (in) | Height (cm) | Diameter (in) | Diameter (cm) | Volume (ml) | Volume (oz) |
|---|---|---|---|---|---|---|
| 8 oz Mini | 4.75 | 12.1 | 2.00 | 5.08 | 237 | 8 |
| 12 oz Standard | 4.83 | 12.3 | 2.13 | 5.41 | 355 | 12 |
| 12 oz Sleek | 6.13 | 15.6 | 2.25 | 5.72 | 355 | 12 |
| 16 oz Tallboy | 6.19 | 15.7 | 2.13 | 5.41 | 473 | 16 |
| 16 oz Sleek | 7.12 | 18.1 | 2.25 | 5.72 | 473 | 16 |
| 16.9 oz (500ml) | 6.25 | 15.9 | 2.13 | 5.41 | 500 | 16.9 |
| 19.2 oz Stovepipe | 6.69 | 17.0 | 2.13 | 5.41 | 568 | 19.2 |
| 24 oz | 8.46 | 21.5 | 2.60 | 6.60 | 710 | 24 |
| 25 oz | 8.50 | 21.6 | 2.60 | 6.60 | 739 | 25 |
| 28 oz | 8.75 | 22.2 | 2.60 | 6.60 | 828 | 28 |
| 32 oz Crowler | 7.12 | 18.1 | 3.00 | 7.62 | 946 | 32 |
All measurements follow Can Manufacturers Institute (CMI) standards used across the U.S. beverage industry.
More Post: https://suitcasessize.com/beverage-can-sizes/
Standard Beer Can Dimensions by Size
Not all beer can sizes are the same. Each size has a specific purpose, a specific audience, and specific numbers that matter for production and packaging.
12 oz Beer Can Dimensions (The Standard)
It stands 4.83 inches (12.3 cm) tall and measures exactly 2.13 inches (54 mm) in diameter. It holds 355 milliliters of beer.
These dimensions have stayed consistent since aluminum cans became the U.S. industry standard in the 1960s. Budweiser, Coors Light, and Miller Lite all use this exact format.
12 oz Sleek Beer Can — Taller, Slimmer Profile
It measures 6.13 inches (15.6 cm) tall with a narrower 2.25-inch diameter. That’s over an inch taller than the standard version.
Craft breweries love this format for premium shelf positioning. The tall, slim silhouette stands out on crowded retail shelves and offers more vertical label real estate for branding.
16 oz Tallboy Beer Can Dimensions
It stands 6.19 inches (15.7 cm) tall — roughly 1.36 inches taller than the standard 12 oz. The diameter stays at 2.13 inches, matching the 12 oz for shared production-line compatibility.
It holds 473 milliliters (16 fl oz). This size accounts for nearly 20% of beer can sales in U.S. convenience stores, making it a vital format for high-volume retailers.
8 oz Mini Beer Can Dimensions
The 8 oz mini beer can stands only 4.75 inches (12.1 cm) tall with a compact 2.00-inch diameter. It holds 237 milliliters.
This format gained real traction after 2018 — especially in the craft beer and high-ABV segment. It is ideal for variety packs, tasting flights, and portion-controlled servings.
19.2 oz Stovepipe Beer Can Dimensions
It stands 6.69 inches (17.0 cm) tall with the standard 2.13-inch diameter. It holds 568 milliliters.
The 19.2 oz stovepipe was built for stadiums, arenas, and large-format convenience retail. It offers more beer than a tallboy without stepping up to the wider 24 oz body.
32 oz Crowler Beer Can Dimensions
It measures 7.12 inches (18.1 cm) tall with a notably wider 3.00-inch (7.62 cm) diameter. It holds a full 946 milliliters (32 fl oz) — essentially a quart of beer.
Craft taprooms use crowlers as a fresh alternative to traditional glass growlers. They are sealed on-demand using a specialized crowler machine.

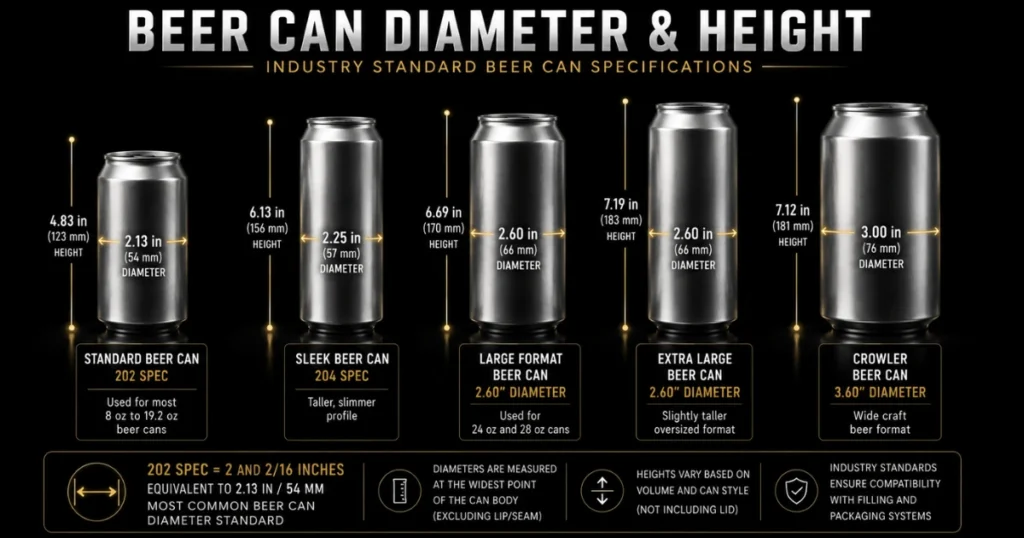

Beer Can Diameter & Height Explained
The U.S. can industry uses a numbering system for end sizes. The number “202” means 2 and 2/16 inches — which equals 2.13 inches or 54 millimeters. This is the standard diameter spec for most 8 oz through 19.2 oz beer cans.
Sleek cans use the 204 spec (2.25 inches). Larger 24 oz and 28 oz formats step up to 2.60 inches in diameter. The crowler uses an even wider 3.00-inch body.
Sleek cans (2.25 inches) appear slimmer visually due to their increased height — a perception trick that craft and premium brands use intentionally to signal quality on retail shelves. It is one of the most effective passive shelf-marketing tools in the beer industry.
Beer Can Dimensions vs. Bottle Dimensions
Cans and bottles both hold the same liquid — but their physical footprint is very different.
Beer Can Dimensions vs. Bottle Dimensions
| Container | Height (in) | Diameter (in) | Volume | Material |
|---|---|---|---|---|
| 12 oz Beer Can (Standard) | 4.83 | 2.13 | 355 ml | Aluminum |
| 12 oz Beer Can (Sleek) | 6.13 | 2.25 | 355 ml | Aluminum |
| 12 oz Long Neck Bottle | 9.09 | 2.40 | 355 ml | Glass |
| 16 oz Tallboy Can | 6.19 | 2.13 | 473 ml | Aluminum |
| 22 oz Bomber Bottle | 11.0 | 2.90 | 651 ml | Glass |
| 64 oz Growler Bottle | 11.0 | 5.00 | 1,893 ml | Glass |
Height comparison: A standard 12 oz long neck bottle stands 9.09 inches tall — nearly double the 4.83-inch height of a 12 oz standard beer can.
Question’s
What are the dimensions of a standard beer can?
The standard 12 oz beer can measures 4.83 inches tall and 2.13 inches in diameter. It holds 355 ml. These specs have been consistent since aluminum cans became the U.S. industry norm in the 1960s.
How tall is a 12 oz beer can in inches?
A 12 oz beer can is 4.83 inches tall (12.3 cm). The sleek 12 oz version is taller at 6.13 inches — same 355 ml volume, different shape.
What is the diameter of a 12 oz beer can?
The body diameter is 2.13 inches (54 mm). Sleek versions measure 2.25 inches across. Both fit standard cup holders and koozies universally.
How tall is a 16 oz tallboy beer can?
A 16 oz tallboy stands 6.19 inches (15.7 cm) tall. The diameter stays at 2.13 inches — the same as the 12 oz standard — for production-line compatibility.
What is the difference between a sleek and standard beer can?
A standard can is shorter and wider. A sleek can is taller and narrower. Both hold the same volume. The sleek format offers more label height and a premium visual profile on retail shelves.
How tall is a 24 oz beer can in inches?
A 24 oz beer can stands 8.46 inches tall (21.5 cm) with a 2.60-inch diameter. It holds 710 ml — nearly double the volume of a standard 12 oz.
Is a tallboy 16 or 24 oz?
A tallboy is 16 oz. It stands 6.19 inches tall with a 2.13-inch diameter. The term “tallboy” specifically means the 16 oz format — calling a 24 oz can a tallboy is a common but incorrect usage.
How big is a 32 oz crowler beer can?
A 32 oz crowler is 7.12 inches tall with a 3.00-inch diameter. It holds 946 ml — a full liquid quart. The wider body requires a specialized crowler seaming machine for on-demand taproom filling.
Are beer can dimensions the same internationally?
Not exactly. European markets use 330 ml and 500 ml as standard sizes, roughly equivalent to 11.2 oz and 16.9 oz. Japan and South Korea use 350 ml (11.8 oz) cans at around 4.9 inches tall. U.S. beer can specs are unique to the North American market.
What does the 202 end size mean on a beer can?
“202” is an industry code. The first digit is inches. The remaining two digits are sixteenths of an inch. So 202 = 2 and 2/16 inches = 2.125 inches — the standard body diameter for most 8 oz through 19.2 oz beer cans.
