The standard 12 oz beverage can stands 4.83 inches tall with a 2.13-inch diameter. But that’s just the starting point. From the compact 7.5 oz mini to the massive 32 oz crowler, every size has precise specs that affect cooler slots, vending machines, label printing, and retail shelf space.
Beverage Can Dimensions Chart
Keep this chart handy for cooler planning, label design, packaging specs, or retail display setup.
Beverage Can Dimensions Chart
| Can Size | Height (in) | Height (cm) | Diameter (in) | Diameter (cm) | Volume (ml) | Volume (oz) |
|---|---|---|---|---|---|---|
| 7.5 oz Mini | 3.50 | 8.9 | 2.13 | 5.41 | 222 | 7.5 |
| 8 oz Slim Short | 4.16 | 10.6 | 2.08 | 5.28 | 237 | 8 |
| 12 oz Standard | 4.83 | 12.3 | 2.13 | 5.41 | 355 | 12 |
| 12 oz Sleek | 6.14 | 15.6 | 2.25 | 5.72 | 355 | 12 |
| 12 oz Slim | 6.61 | 16.8 | 2.09 | 5.31 | 355 | 12 |
| 16 oz Tallboy | 6.19 | 15.7 | 2.13 | 5.41 | 473 | 16 |
| 19.2 oz Stovepipe | 6.90 | 17.5 | 2.13 | 5.41 | 568 | 19.2 |
| 24 oz | 7.84 | 19.9 | 2.60 | 6.60 | 710 | 24 |
| 32 oz Crowler | 8.70 | 22.1 | 3.00 | 7.62 | 946 | 32 |
All measurements follow Can Manufacturers Institute (CMI) standards used across the U.S. beverage industry.
More Post: https://suitcasessize.com/deer-can-sizes/

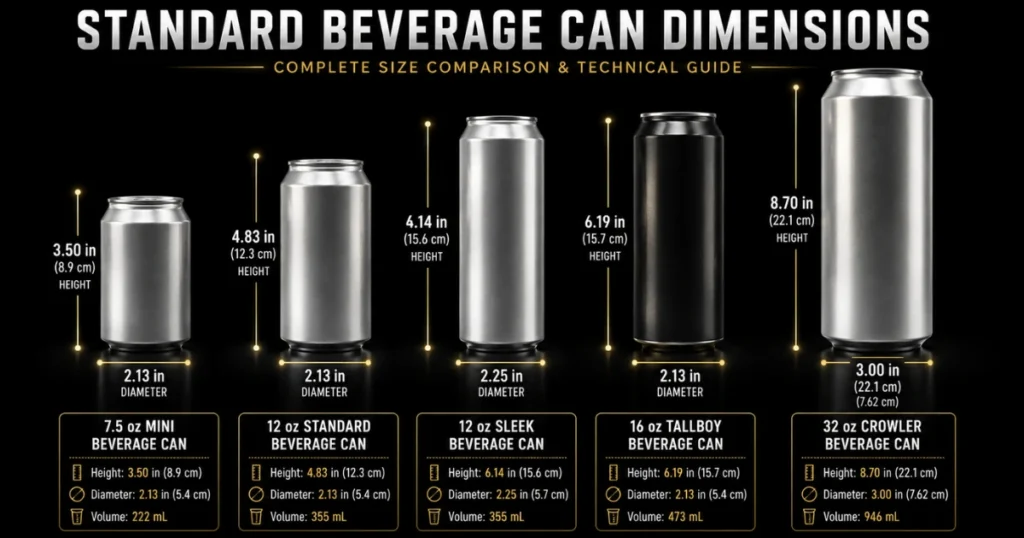

Standard Beverage Can Dimensions by Size
Not all beverage cans are the same. Each size has a specific purpose, a specific audience, and specific numbers that matter for production and packaging.

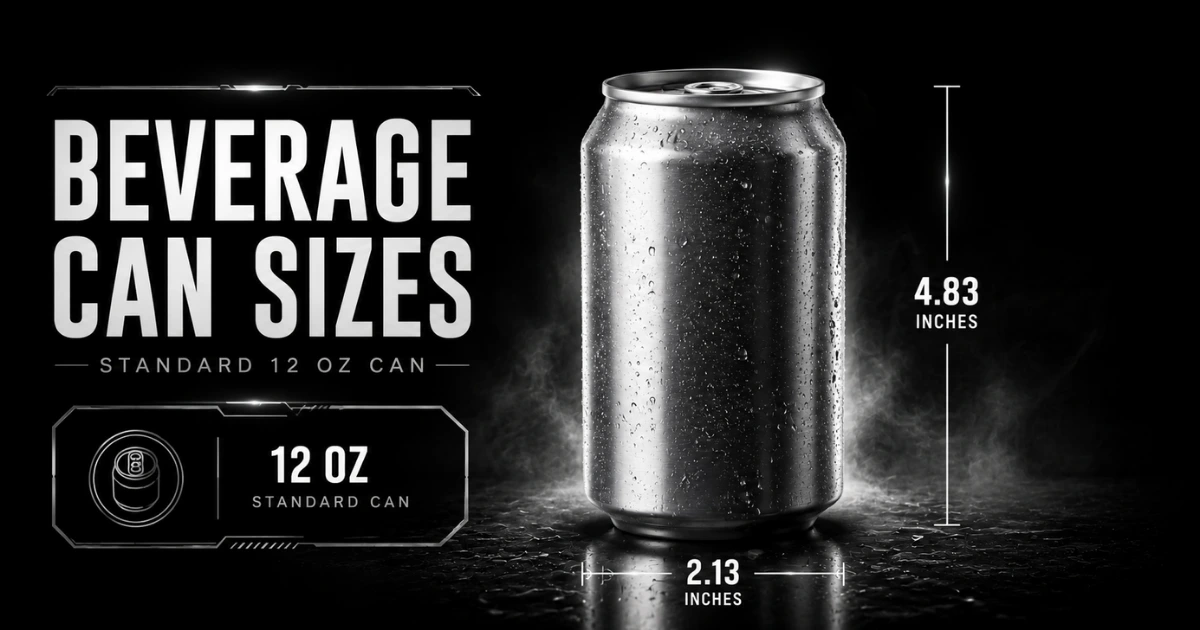

12 oz Beverage Can Dimensions (The Standard)
It stands 4.83 inches (12.3 cm) tall and measures exactly 2.13 inches (54 mm) in diameter. It holds 355 milliliters of liquid.
These dimensions have stayed consistent since aluminum cans became the industry standard in the 1960s. That consistency is intentional — it allows universal compatibility with cup holders, koozies, cooler racks, and filling equipment.
12 oz Sleek Beverage Can — Taller, Slimmer Profile
It measures 6.14 inches (15.6 cm) tall with a narrower 2.25-inch diameter. That’s over an inch taller than the standard version.
Hard seltzer brands and craft beverage companies love this format for premium shelf positioning. The tall, slim silhouette stands out on crowded shelves and offers more vertical label real estate for branding.
16 oz Tallboy Beverage Can Dimensions
It stands 6.19 inches (15.7 cm) tall — roughly 1.36 inches taller than the standard 12 oz. The diameter stays at 2.13 inches, matching the 12 oz for shared production-line compatibility.
It holds 473 milliliters (16 fl oz). This size represents nearly 20% of beer can sales in U.S. convenience stores, making it a vital format for high-volume retailers. Monster Energy, craft beers, and Red Bull 16 oz all use this format.
7.5 oz Mini Beverage Can Size
The 7.5 oz mini beverage can stands only 3.50 inches (8.9 cm) tall with a 2.13-inch diameter. It holds 222 milliliters.
This format gained real traction after 2018 — especially in the soda and sparkling water segment. Coca-Cola Mini and Pepsi Mini lead this category.
32 oz Crowler Beverage Can Dimensions
It measures 8.70 inches (22.1 cm) tall with a notably wider 3.00-inch (7.62 cm) diameter. It holds a full 946 milliliters (32 fl oz) — essentially a quart of beverage.
Craft taprooms use crowlers as an alternative to traditional glass growlers. They’re sealed on-demand using a specialized crowler machine.

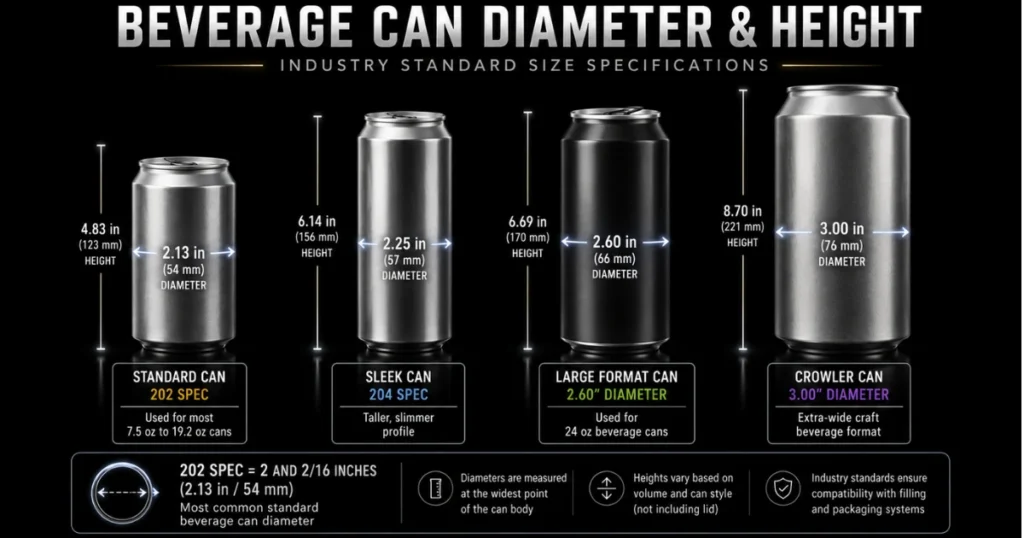

Beverage Can Diameter & Height Explained
The U.S. can industry uses a numbering system for end sizes. The number “202” means 2 and 2/16 inches — which equals 2.13 inches or 54 millimeters. This is the standard diameter spec for most 7.5 oz through 19.2 oz cans.
Sleek cans use the 204 spec (2.25 inches). Larger 24 oz formats step up to 2.60 inches in diameter. The crowler uses an even wider 3.00-inch body.
Sleek cans (2.25 inches) appear slimmer visually due to their increased height — a perception trick that craft and premium brands use intentionally to signal quality on retail shelves.
Beverage Can Dimensions vs. Bottle Dimensions
Cans and bottles both hold the same liquid — but their physical footprint is very different.
Beverage Can Dimensions vs. Bottle Dimensions
| Container | Height (in) | Diameter (in) | Volume | Material |
|---|---|---|---|---|
| 12 oz Beverage Can (Standard) | 4.83 | 2.13 | 355 ml | Aluminum |
| 12 oz Beverage Can (Sleek) | 6.14 | 2.25 | 355 ml | Aluminum |
| 12 oz Long Neck Bottle | 9.09 | 2.40 | 355 ml | Glass |
| 16 oz Tallboy Can | 6.19 | 2.13 | 473 ml | Aluminum |
| 22 oz Bomber Bottle | 11.0 | 2.90 | 651 ml | Glass |
| 64 oz Growler Bottle | 11.0 | 5.00 | 1,893 ml | Glass |
Height comparison: A standard 12 oz long neck bottle stands 9.09 inches tall — nearly double the 4.83-inch height of a 12 oz standard beverage can. That height difference directly impacts storage density in coolers and distribution cases.
Question’s
What are the standard dimensions of a beverage can?
The standard 12 oz beverage can measures 4.83 inches tall and 2.13 inches in diameter. It holds 355 ml. These specs have been consistent since aluminum cans became the U.S. beverage industry norm.
How tall is a 12 oz beverage can in inches?
A 12 oz beverage can is 4.83 inches tall (12.3 cm). The sleek 12 oz version is taller at 6.14 inches, with the same 355 ml volume.
What is the diameter of a 12 oz beverage can?
The diameter is 2.13 inches (54 mm) for the standard 12 oz. Sleek versions measure 2.25 inches across. Both fit standard cup holders and koozies.
How tall is a 16 oz tallboy beverage can?
A 16 oz tallboy stands 6.19 inches (15.7 cm) tall. The diameter stays at 2.13 inches — the same as the 12 oz standard — for production-line compatibility.
What is the difference between a sleek and standard beverage can?
A standard can is shorter and wider. A sleek can is taller and narrower. Both hold the same volume. The sleek format offers more label height and a premium visual profile on retail shelves.
How big is a 32 oz crowler beverage can?
A 32 oz crowler measures 8.70 inches tall with a 3.00-inch diameter. It holds 946 ml — a full quart of liquid. The wider body requires a specialized seaming machine for on-demand filling at taprooms.
Do beverage can dimensions vary by brand?
No. Beverage can dimensions follow standardized Can Manufacturers Institute (CMI) specs. Branding, graphics, and finishes vary by brand — but the physical height, diameter, and volume measurements are consistent across all U.S. manufacturers.
What does 202 diameter mean on a beverage can?
“202” is an industry code. The first digit is inches. The remaining two digits are sixteenths of an inch. So 202 = 2 and 2/16 inches = 2.125 inches — the standard body diameter for most 7.5 oz through 19.2 oz cans.
Are beverage can dimensions the same internationally?
Not exactly. European markets use 330 ml and 500 ml as standard sizes, roughly equivalent to 11.2 oz and 16.9 oz. Japanese and South Korean markets favor 350 ml (11.8 oz) cans at around 4.9 inches tall. U.S. specs are unique to the North American market.
